Nov27: Added UNTESTED BMG mount that goes onto orbiter mounting holes.
"Mars Sherpa Orbiter v109" (removed v106) Nov29: Sherpa mini version (bltouch version and swappable probe version ), will work on ender3/pro/v2/cr10 Nov29: Duct for Printermod MDD 1.3 ender3v2 mounting plate, with dragon mount only for now - untested Nov29: Phaetus Rapido HF rigid mount, untested (UHF would put the nozzle probably too low, but could make a mount of it if interested) I only did assumption about threaded holes and non threaded wholes, seems like only the hotend mount is threaded and mounted from the front, everything else is mounted from the back.ĭec 7: printermod MDD 1.3 ender3v2 dragon mount tiny fixĭec 2: Untested left rotated fan version, pointing directly into the duct output. This being a retrofit, it's not perfect, but should still work quite well. And only Rapido hotend end for now, if you are interested in another hotend mount, let me know. "Mars Orbiter v116 - Orbiter 2.0 mount - ender3 - swappable probes"ĭec 11: small fix on printermod shroud (prototype stage)ĭec 7: Prototype for BIQU HERMIT CRAB (files with hermitcrab on the filename), orbiter, sherpa, and orbiter with 90deg rotated fan, all swappable probe. "Mars Orbiter v116 - Orbiter 2.0 mount - ender3 - bltouch" Removed the old one, new one coming shortly.ĭec 16: Orbiter Extruder v2.0 supported, only ender3/v2/pro cr10 for now (bltouch version and swappable probe version). (not compatible with orbiter v2.0)ĭec19: u/roofuskit pointed out that BMG mount I made was unusable and recreated a working concept, that I will base a new design on. Use M3x8 to attache it to orbiter1.5 mounting points. you will need print support for that one. Use m3x8 to mount it on the orbiter 1.5 mounting holes.ĭec20: Added prototype of new BMG mount using the groove mount. And a second in two pieces, no print support, held together with two M3x8. Single print version with print support needed. Based on a clone BMG so not sure if the locked version will work on all.ĭec28: Reorganized files in zips and folders, should be more intuitive nowĭec 28: Updated dragon rigid mount with M6 pneumatic fitting thread, for bowden setup.ĭec22: Redesigned BMG groove mount added with orbiter1.5 mounting holes. "unlocked" version that can rotate 360 like before, locked version with motor facing the front, and locked version with motor facing the left side. (Not compatible with UHF version as it's too tall).ĭec29: updated BMG orbiter 1.5 mount, larger platform, and heat inserts version for the 2 pieces. Rapido M2.5x8, would take exactly 8mm screws, so added 0.6mm of tolerance to give little roomįor ender3/pro/v2 CR10 added a no direct drive version with swappable probe and one with no probeĭec29: added step by step instruction with picturesĭec 29: Phaetus Rapido HF (ender3/pro/v2 cr10 and hermitcrab mount) updated, installed and working. Jan 8, 2022: I was pointed out that the rigid mount for the dragonfly BMO could only take M2.5圆, So I added a version of the mount for M2.5x8, and maximum M3x8 to bind the two printed part (M2.5圆 version will remain)
#Orbiter extruder extruder v2.0 free

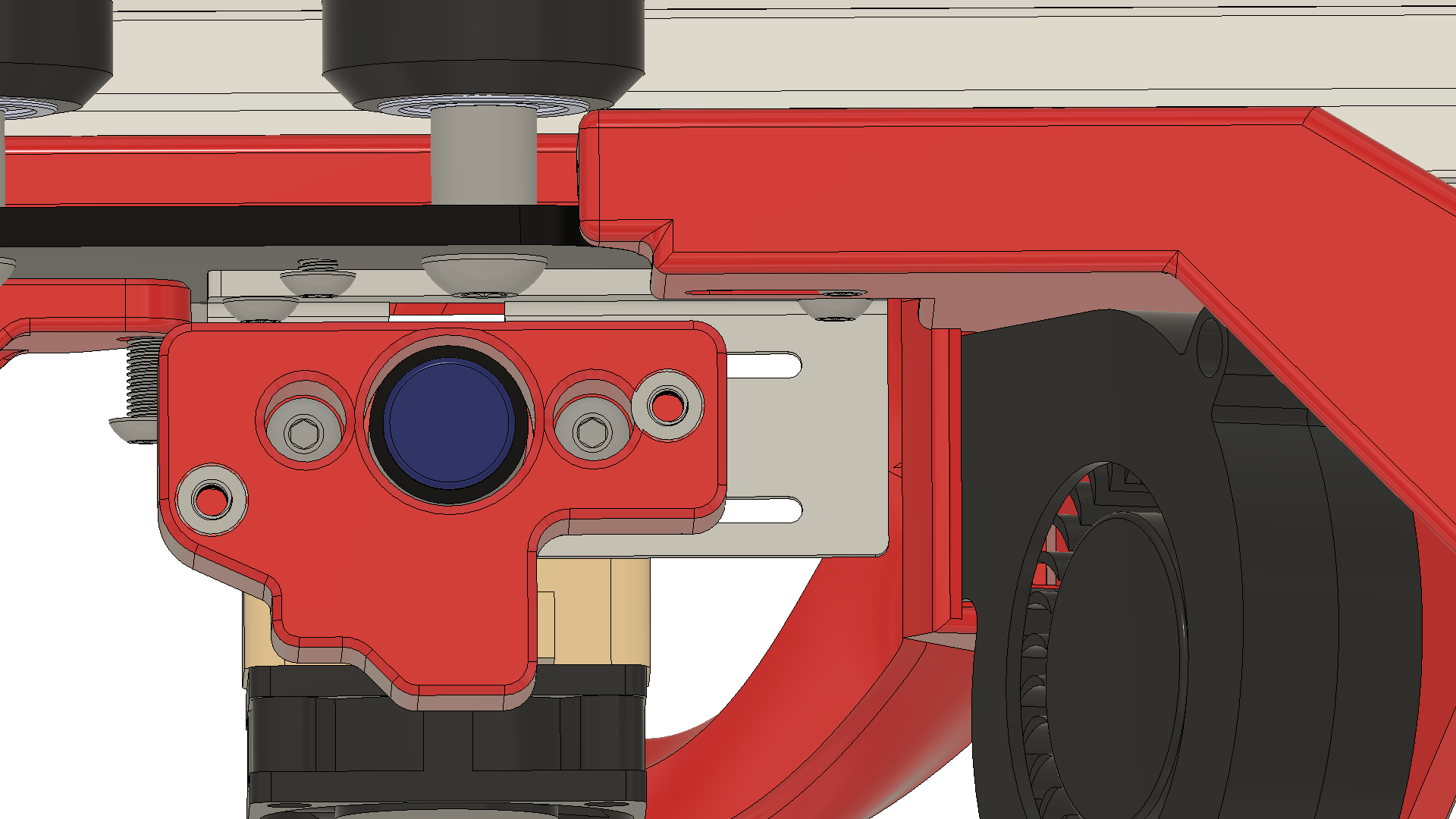

Make sure to set the correct BLtouch offset and mesh min/max to avoid crashing your print head (values are further below)įeb 10, 2022: Mars orbiter files are now free thanks to my Patron supporter on - and a huge thank you to everyone else who purchased it here.īeefed up the BLTouch cable tidy prongs, should not break as easily (hopefully) Slice Engineering copperhead (unconfirmed), Phaetus Rapid HF (unconfirmed), stock hotend, dragon (rigid mounted), dragonfly BMS/BMO (rigid mounted), microswiss Direct drive.BLtouch, CRtouch, 12mm & 18mm probes (like EZABL).
(this is and always has been a public post for the instructions) STEP BY STEP installation with pictures:
